3S-2,5" Phantom25 1103 7500KV HU (2024-2025)

By scirocco on May 12, 2024

2  0  3

Frame: GEPRC GEP-PT PHANTOM Toothpick Freestyle 125mm 2.5 Inch
FC: JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S

VTX: HappyModel OVX306 OPENVTX 5.8G 48CH 400mW
Propeller: Gemfan 2 Blades PC Propeller 65mm
Motor: DroneART 2-3S 1103/7500KV
Camera: Caddx ANT
Receiver: ELRS 2.4G Receiver Mini ExpressLRS 2.4G RX litle 2400RX EP2

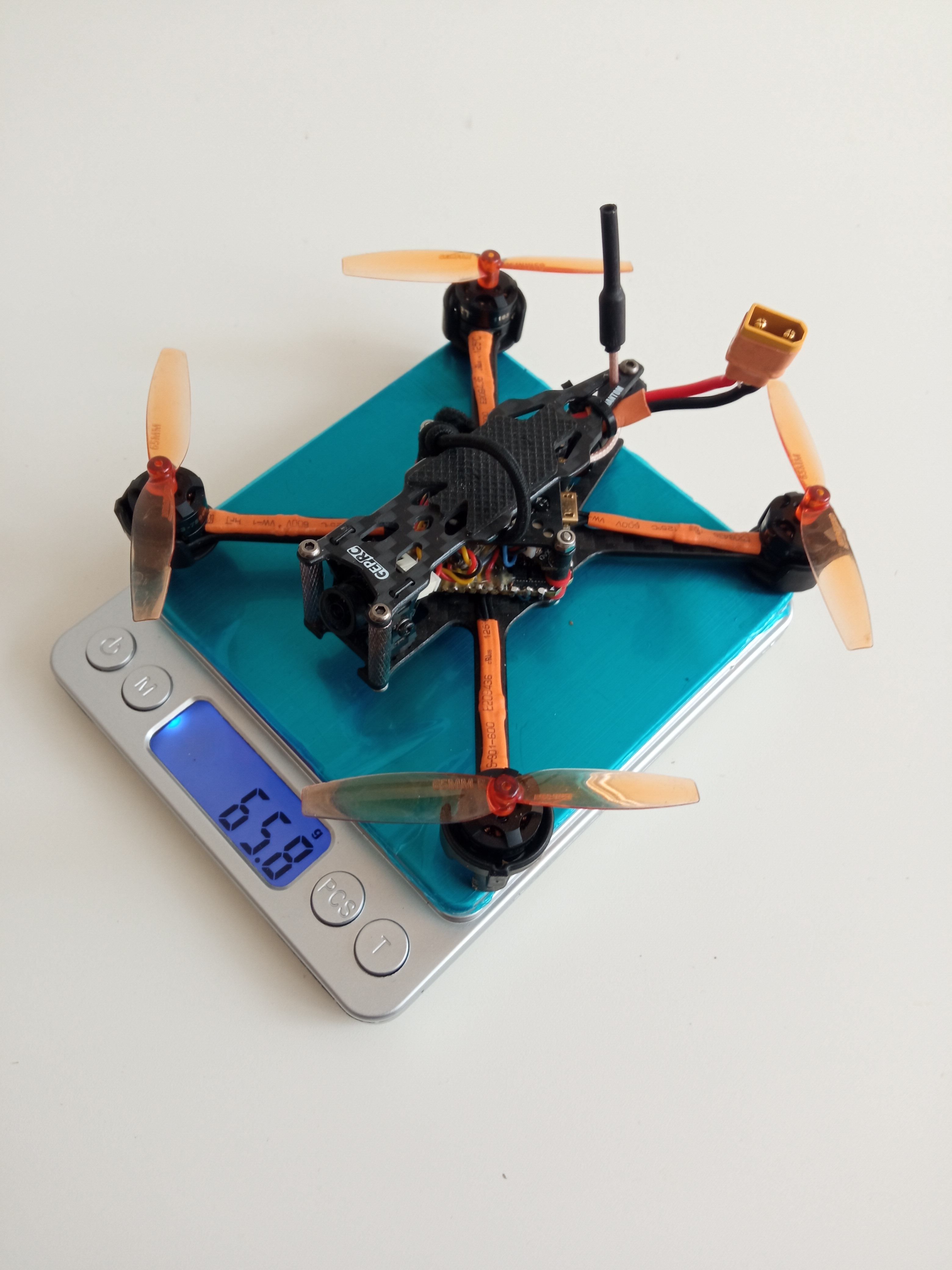

Weight: 66g

Battery: GNB HV 3S 380mah (31g)

Summ weight: around 98g

Fly time: 5minutes

Photos

Discussion

Sign in to comment

MarieOlson   29 days ago

That's a sweet build! The GEPRC Phantom frame combined with that JHEMCU FC looks like a recipe for agile freestyle. And with those DroneART motors and Gemfan props, it'll really rip. Getting smooth video from the Caddx ANT is key. This setup seems perfect for zipping around tight spaces, almost like you're playing Slope Game in the real world, navigating obstacles with precision and speed.

scirocco   29 days ago

yeah thnx... it is very good combination highest altitude with it 680m :)
I did practice here :​

turn off the sound

airrage   May 13, 2024
1

Good ol Phantom frame, legend.
